BNO080 — i2c address & wiring
9-axis IMU with on-chip sensor fusion — outputs ready-made orientation, not raw axes.
Key facts
BNO080 at a glance
| i2c address | 0x4A0x4B address-selectable via pins/jumpers |
|---|---|
| Logic voltage | 2.4–3.6 V |
| Type | sensor |
| Part | CEVA BNO080 |
| Ships with | Qwiic |
The chip
What the CEVA BNO080 actually is
Nine-axis system-in-package combining a three-axis accelerometer, gyroscope and magnetometer with an on-board 32-bit MCU running SH-2 sensor-fusion firmware — it outputs fused rotation vectors and quaternions directly instead of raw axes alone.
Watch out: Leans heavily on i2c clock stretching, which the Raspberry Pi's hardware controller famously mishandles — expect corrupted reads there. Pair it with a microcontroller, or put it on the Pi's software-i2c overlay instead.
Wiring
How to connect the BNO080
The BNO080 talks i2c at address 0x4A (up to 2 selectable addresses, handy when you need more than one on the same bus). It runs at 2.4–3.6 V, so match your host's logic level — if your host is 5 V and a board on the bus is 3.3 V-only, add a level shifter. Use the compatibility checker to confirm the exact cable for your setup.
Because the address is selectable, you can run several BNO080 boards on one bus by setting each to a different address — no extra wiring beyond the shared SDA/SCL.

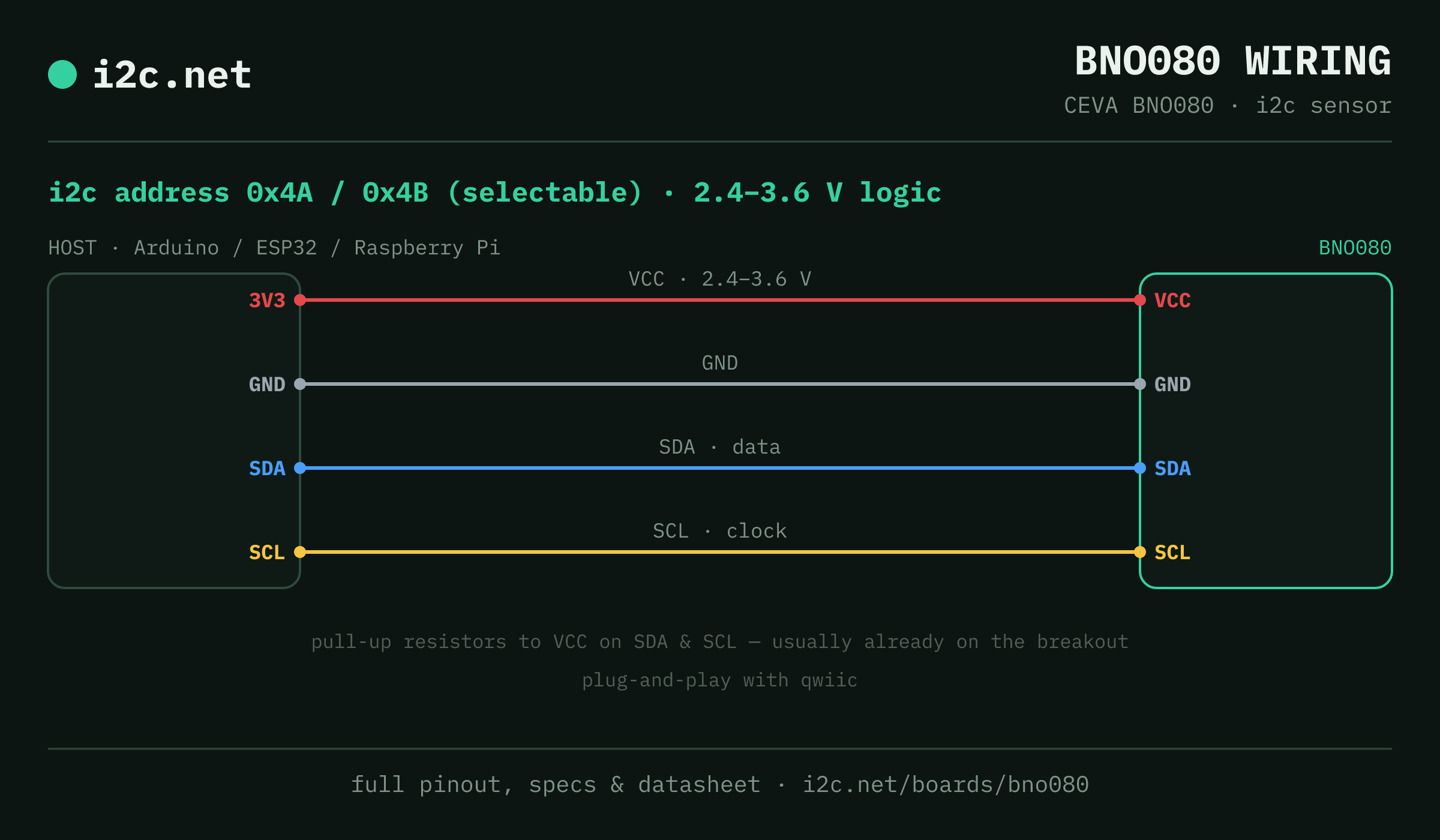

Wiring is the usual four: power, ground, SDA and SCL, plus pull-up resistors — almost always already fitted on the breakout. Nothing showing up? Run an i2c scan first; if the bus is silent, the 7-step checklist finds it faster than guessing.
