PCF8591 — i2c address & wiring
8-bit 4-channel ADC plus a DAC output — the chip on the classic YL-40 module.
Key facts
PCF8591 at a glance
| i2c address | 0x480x490x4A0x4B0x4C0x4D0x4E0x4F address-selectable via pins/jumpers |
|---|---|
| Logic voltage | 2.5–6 V |
| Type | adc |
| Part | NXP PCF8591 |
| Ships with | generic modules — plain 0.1″ headers, no connector system |
The chip
What the NXP PCF8591 actually is
8-bit mixed-signal converter integrating four multiplexed analog inputs, one 8-bit digital-to-analog (DAC) output and an i2c interface. Intended for low-speed analog measurement and simple analog voltage generation where high precision is not required.
Wiring
How to connect the PCF8591
The PCF8591 talks i2c at address 0x48 (up to 8 selectable addresses, handy when you need more than one on the same bus). It runs at 2.5–6 V, so match your host's logic level — if your host is 5 V and a board on the bus is 3.3 V-only, add a level shifter. Use the compatibility checker to confirm the exact cable for your setup.
Because the address is selectable, you can run several PCF8591 boards on one bus by setting each to a different address — no extra wiring beyond the shared SDA/SCL.

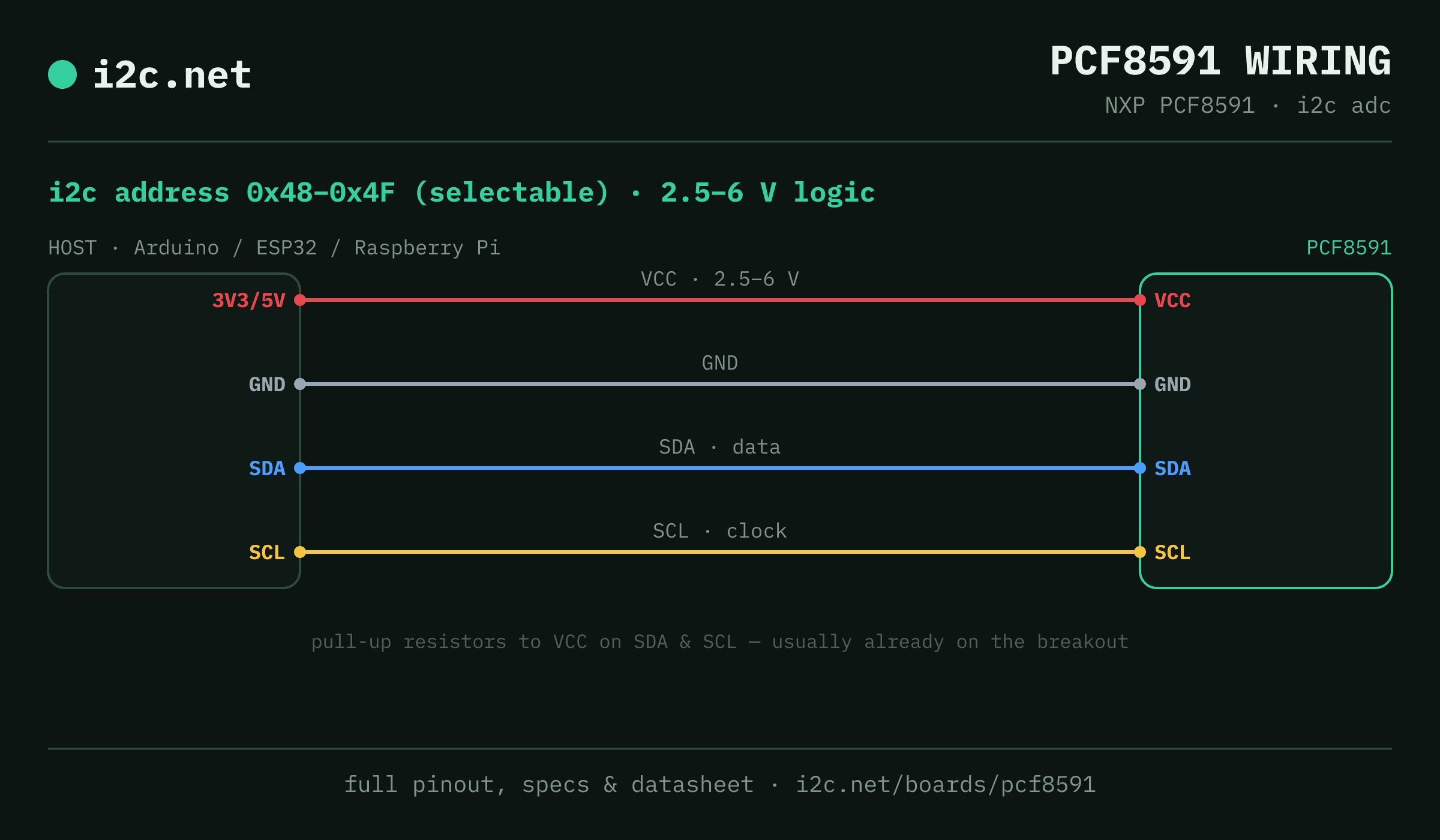

Wiring is the usual four: power, ground, SDA and SCL, plus pull-up resistors — almost always already fitted on the breakout. Nothing showing up? Run an i2c scan first; if the bus is silent, the 7-step checklist finds it faster than guessing.
