ADS1015 — i2c address & wiring
12-bit, 3.3 kSPS sibling of the ADS1115 — less resolution, much faster.
Key facts
ADS1015 at a glance
| i2c address | 0x480x490x4A0x4B address-selectable via pins/jumpers |
|---|---|
| Logic voltage | 2–5.5 V |
| Type | adc |
| Part | TI ADS1015 |
| Ships with | Qwiic, STEMMA QT |
| Datasheet | TI ADS1015 — manufacturer documentation ↗ |
The chip
What the TI ADS1015 actually is
12-bit delta-sigma analog-to-digital converter with four multiplexed single-ended or two differential inputs, a programmable gain amplifier (PGA), programmable comparator and an i2c interface. Data rates up to 3300 samples per second — faster conversions than the ADS1115 at reduced resolution.
Wiring
How to connect the ADS1015
The ADS1015 talks i2c at address 0x48 (up to 4 selectable addresses, handy when you need more than one on the same bus). It runs at 2–5.5 V, so match your host's logic level — if your host is 5 V and a board on the bus is 3.3 V-only, add a level shifter. Use the compatibility checker to confirm the exact cable for your setup.
Because the address is selectable, you can run several ADS1015 boards on one bus by setting each to a different address — no extra wiring beyond the shared SDA/SCL.

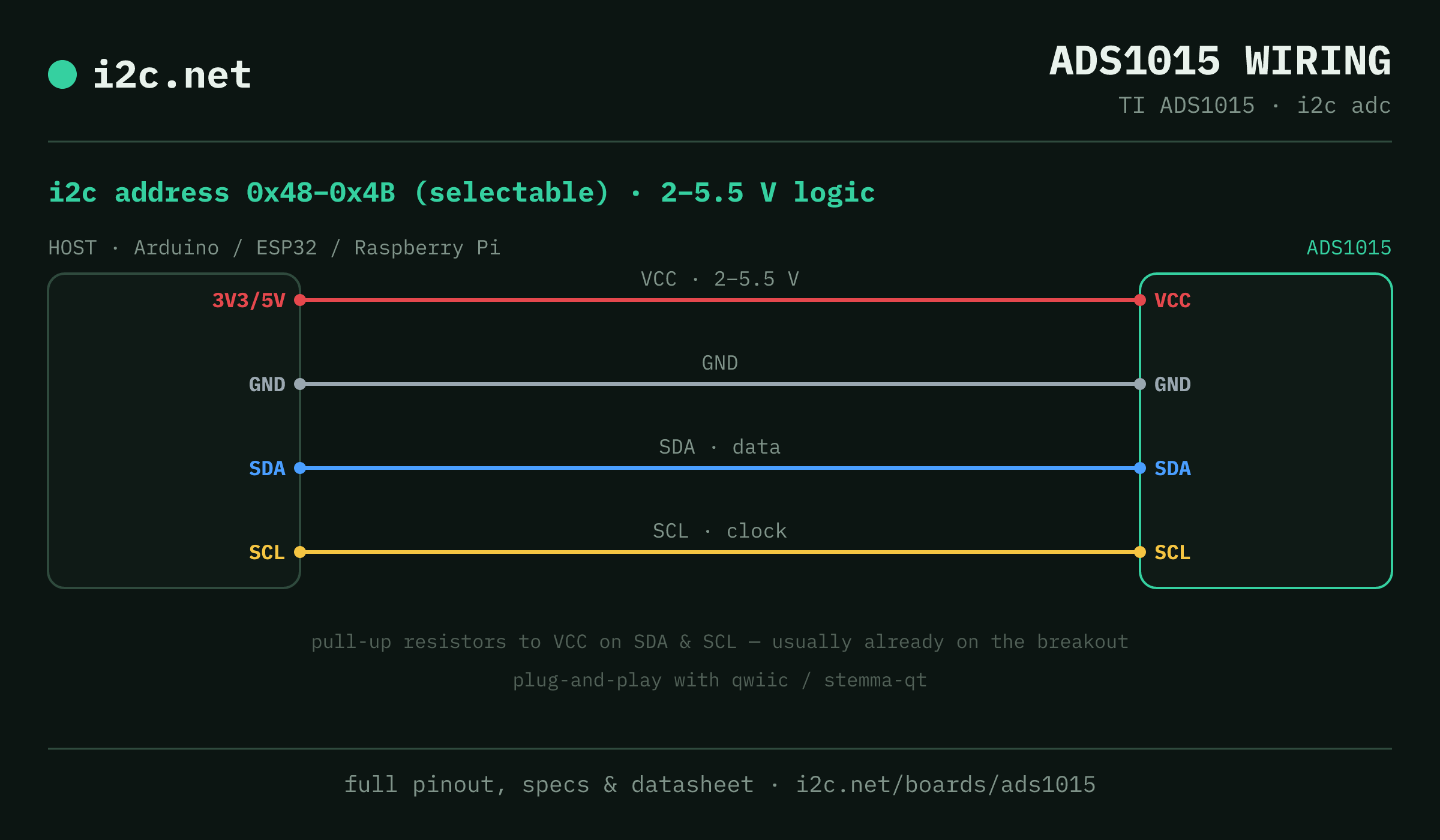

Wiring is the usual four: power, ground, SDA and SCL, plus pull-up resistors — almost always already fitted on the breakout. Nothing showing up? Run an i2c scan first; if the bus is silent, the 7-step checklist finds it faster than guessing.
