INA260 — i2c address & wiring
Current, voltage and power monitor with the precision shunt built in — no resistor math.
Key facts
INA260 at a glance
| i2c address | 0x400x410x420x430x440x450x460x470x480x490x4A0x4B0x4C0x4D0x4E0x4F address-selectable via pins/jumpers |
|---|---|
| Logic voltage | 2.7–5.5 V |
| Type | adc |
| Part | TI INA260 |
| Ships with | generic modules — plain 0.1″ headers, no connector system |
| Datasheet | TI INA260 — manufacturer documentation ↗ |
The chip
What the TI INA260 actually is
Precision current, voltage and power monitor integrating a factory-calibrated 2 mΩ current shunt. Measures bus voltage, current and calculated power without requiring an external current-sense resistor or calibration-register math.
Wiring

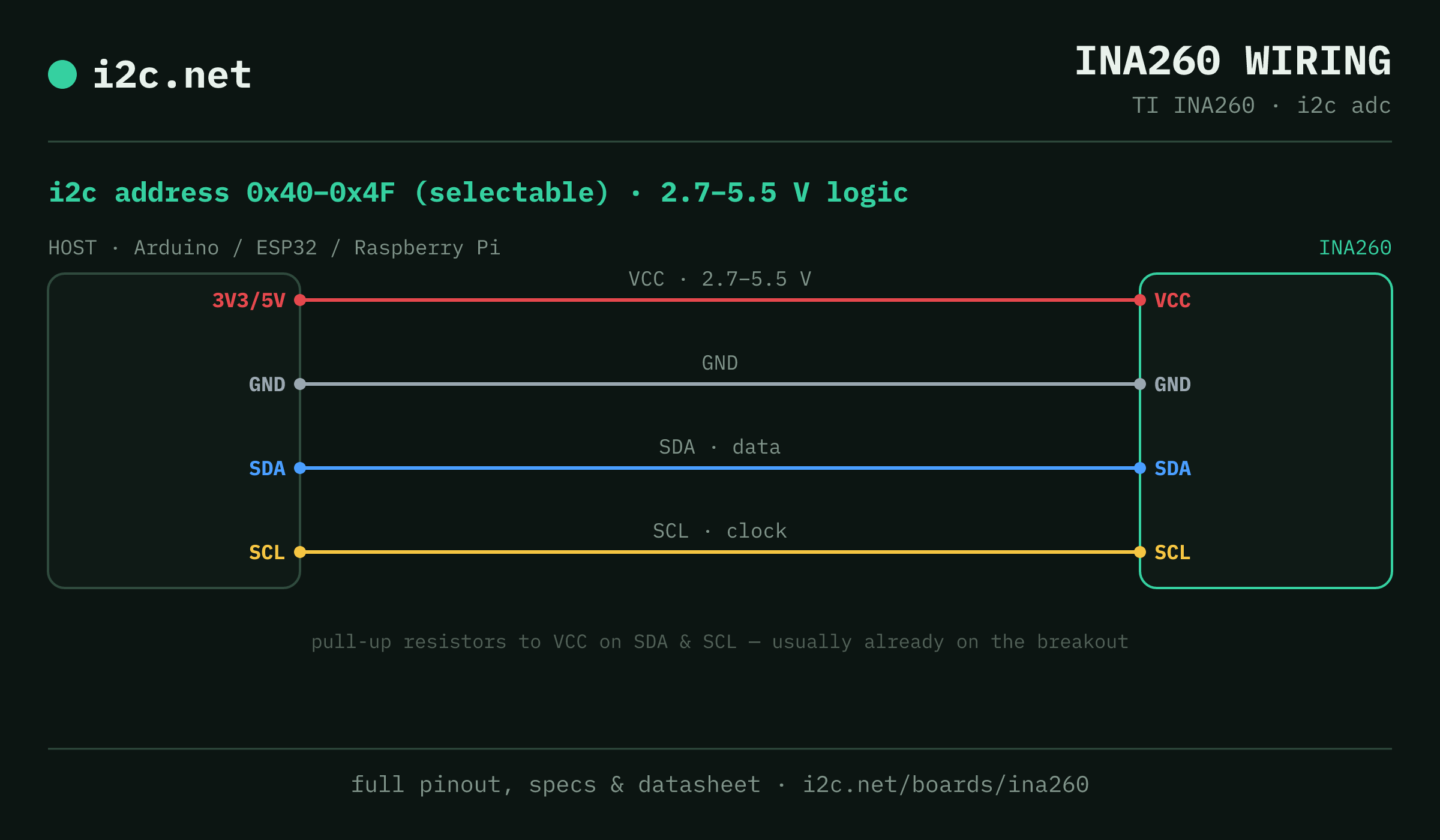

How to connect the INA260
The INA260 talks i2c at address 0x40 (up to 16 selectable addresses, handy when you need more than one on the same bus). It runs at 2.7–5.5 V, so match your host's logic level — if your host is 5 V and a board on the bus is 3.3 V-only, add a level shifter. Use the compatibility checker to confirm the exact cable for your setup.
Because the address is selectable, you can run several INA260 boards on one bus by setting each to a different address — no extra wiring beyond the shared SDA/SCL.
Wiring is the usual four: power, ground, SDA and SCL, plus pull-up resistors — almost always already fitted on the breakout. Nothing showing up? Run an i2c scan first; if the bus is silent, the 7-step checklist finds it faster than guessing.
