CCS811 — i2c address & wiring
Metal-oxide gas sensor that reports eCO2 and TVOC estimates over i2c.
Key facts
CCS811 at a glance
| i2c address | 0x5A0x5B address-selectable via pins/jumpers |
|---|---|
| Logic voltage | 1.8–3.6 V |
| Type | sensor |
| Part | ams CCS811 |
| Ships with | Qwiic, STEMMA QT |
| Datasheet | ams CCS811 — manufacturer documentation ↗ |
The chip
What the ams CCS811 actually is
Digital gas sensor pairing a metal-oxide (MOX) sensing element with an on-chip microcontroller that processes the readings into equivalent CO2 (eCO2) and total volatile organic compound (TVOC) values. The ADDR pin selects 0x5A (low) or 0x5B (high). Supply runs 1.8–3.6 V.
Watch out: Two things stop it answering at all. nWAKE is active-low and must be held low during any i2c access — tie it to GND if you don't need sleep (Adafruit's STEMMA QT version handles this for you). And the default address depends on the board: SparkFun's ship at 0x5B with a jumper for 0x5A, so trust your scan, not a library default. Its eCO2 figure is inferred from VOCs, not measured — for real CO2 use an SCD40.
Wiring
How to connect the CCS811
The CCS811 talks i2c at address 0x5A (up to 2 selectable addresses, handy when you need more than one on the same bus). It runs at 1.8–3.6 V, so match your host's logic level — if your host is 5 V and a board on the bus is 3.3 V-only, add a level shifter. Use the compatibility checker to confirm the exact cable for your setup.
Because the address is selectable, you can run several CCS811 boards on one bus by setting each to a different address — no extra wiring beyond the shared SDA/SCL.

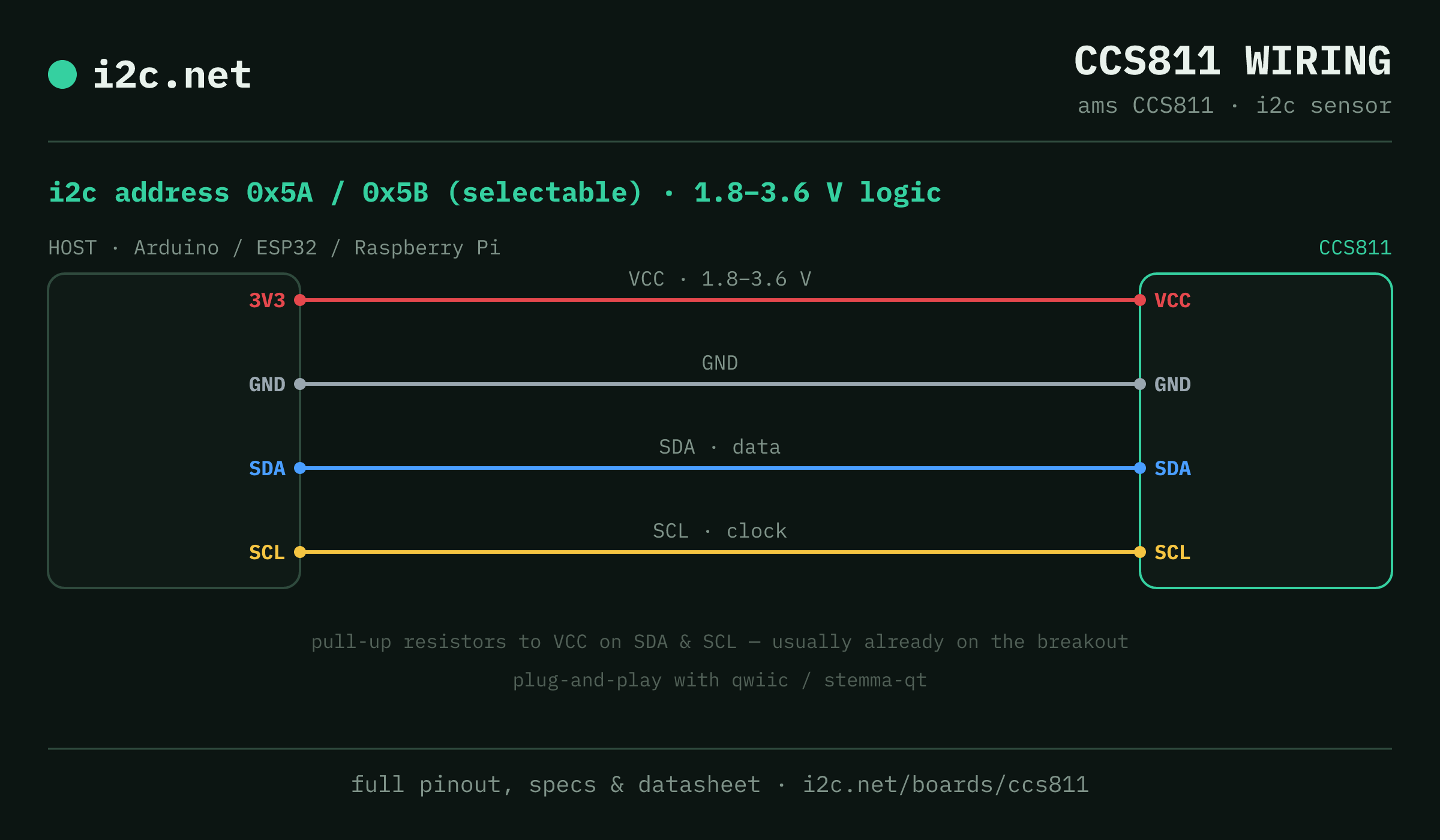

Wiring is the usual four: power, ground, SDA and SCL, plus pull-up resistors — almost always already fitted on the breakout. Nothing showing up? Run an i2c scanner first; if the bus is silent, the 7-step checklist finds it faster than guessing.
